Description:
Product introduction
SCS high-end digital truck scale (weighbridge) : equipped with the original high-end imported digital weighing sensor and digital weighing display, modular weighing table, waterproof, lightning shock, anti-cheating, anti-rat bite cable, professional weighing software, supporting Lenovo computer set and Epson printer composition. High-end accessories improve the quality of the scale, making it more convenient to debug, safer to use, simpler to maintain, more convenient communication, higher degree of intelligence, and stronger anti-interference ability.
Product advantage
1. High-end imported digital weighing sensor adopts digital technology, which can automatically digital compensation for temperature coefficient, nonlinear, hysteresis and creep; Transmission signal digitization, can effectively prevent electromagnetic signal remote interference, to achieve anti-cheating effect.
2. The system design can be lightning protection 100000A,99.9% lightning protection.
3. Waterproof rating IP69, outdoor operation thunderstorm weather more areas can also drive.
4. The scale is made of elastic steel with good rigidity; International standard U-shaped steel bridge structure, weighing platform bearing capacity; Rust removal and oxidation treatment, sand painting, durable scale table, beautiful appearance.
5. Scale design modular, standardized, serialized, can be composed of a variety of specifications. The whole digital weighbridge system has strong environmental adaptability, superior measurement performance, high accuracy, good long-term stability, easy installation, debugging and maintenance.
Applicable occasion
Widely used in metallurgy, mining, machinery, chemical industry, port, and highway freight station industry.
SCS digital truck scale (weighbridge) parameters
Model SCS Accuracy Class Ⅲ Maximum weighing 1--300T Minimum weighing 40kg-400kg Index Value 0.1kg --10kg Overload coefficient 150% Interface mode Rs485 Signal transmission distance ≤1000m Transmission baud rate ≤19200bps Signal power DC12V, Not less than 600mA products implement standard GB/7723-2008 display 7-bit digital tube, 7 Status indicators Transmission mode RS232/RS485 AC input AC110 to 220V 50 to 60HZ Auxiliary power DC12V Operating temperature -20 to 60 degrees Storage and transportation temperature -40 to 70 Relative humidity ≤85%RH 10 Anti-cheating 99.9% anti-cheating lightning-proof lightning-proof thickness standard 10~14mm (other thickness can be customized) Size standard width: 3-3.5m length: 16-24m (customizable) Material A3 Steel (Shanghai Baosteel, Density 7.85g/cm3 Overload capacity 150%F.S Limit overload 200%F.S Digital module Effective resolution A/D 100,000-code data refresh rate 50HZ communication baud rate 9600BPS Accuracy ±0.02%F.S Optimum temperature -30 to 70 ° C Zero output ±0.1%F.S Safety overload 150%F.S protection level IP68 Recommended voltage 9 to 12VDC Maximum voltage 20VDC Signal transmission distance 1200 200m Rated load of the sensor 20,25,30,40 Rated output 20000 25000 30000 40000 codes
In order to better select the ideal product for users, please read the following carefully:
1. Scope of use of weighbridge: the correct use range of weighbridge is about 70%, the weighing limit of weighbridge is generally not more than 90%, and the use of long-term load affects the service life of the sensor. According to your normal scope of use of the scale to select suitable for your scope of use. For example, if the general weighing range is about 70t, 100t weighbridge should be selected.
2. Weighbridge function selection: according to different user needs, high precision, lightning protection, waterproof, ultimate load and other functions of the choice is different, you can choose imported high-end high-end imported sensors (imported supporting equipment), or domestic high-end sensors. For example: Guangdong spring and summer thunderstorm weather more, outdoor weighbridge (truck scale) need to buy imported lightning protection sensors, once damaged, change a set of sensors is also quite expensive.

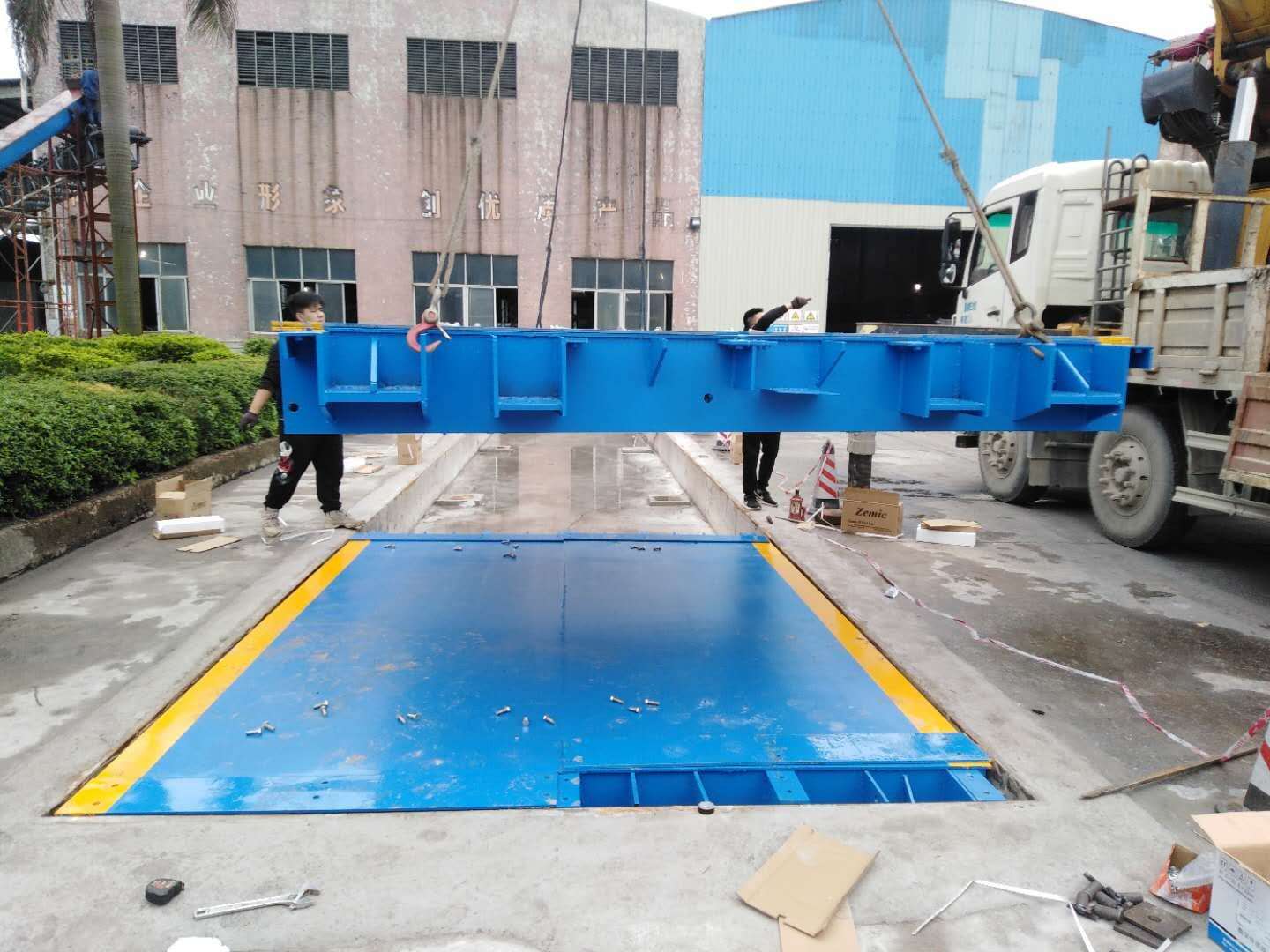

3. Weighing platform selection ① According to the user's use of different occasions, for a variety of different users to customize the suitable weighing platform. Such as: chemical plants, need corrosion resistant scale, according to the corrosion grade is not the same, customized suitable stainless steel + corrosion resistant paint scale, increase the service life of the scale; For explosion-proof use occasions, ex intrinsic safety explosion-proof instruments, explosion-proof sensors can be customized, and paint that is not easy to react with air and other substances can be used to ensure the service life of explosion-proof scale. ② The company adopts the international standard U-shaped steel bridge structure concept, 5-7 U-shaped main beams per weighing platform (stronger bearing capacity), steel plate thickness of 12mm, 14mm, 16mm, multi-fold design, according to different user use occasions, stress points can be selected, to achieve humanized design.

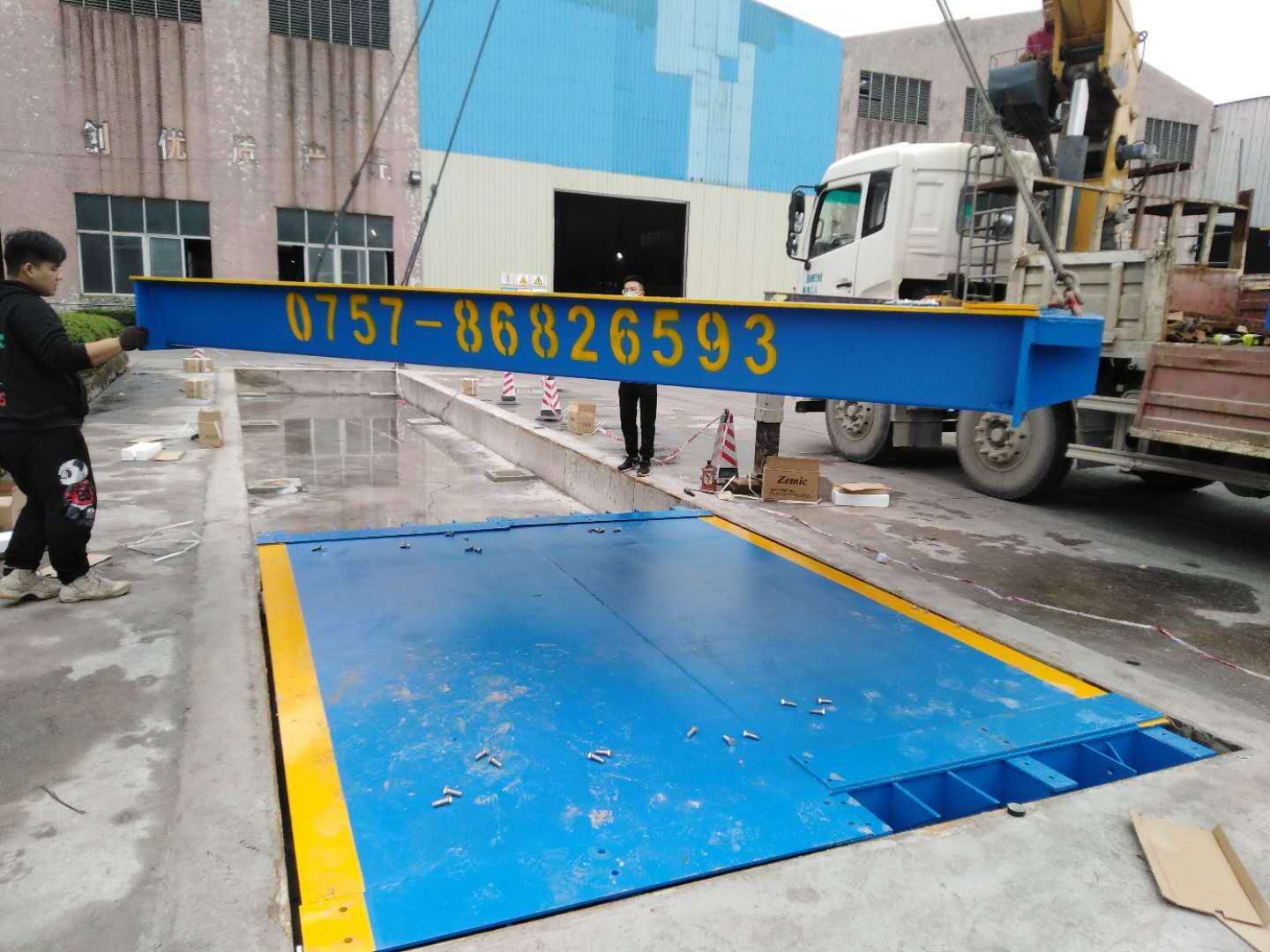

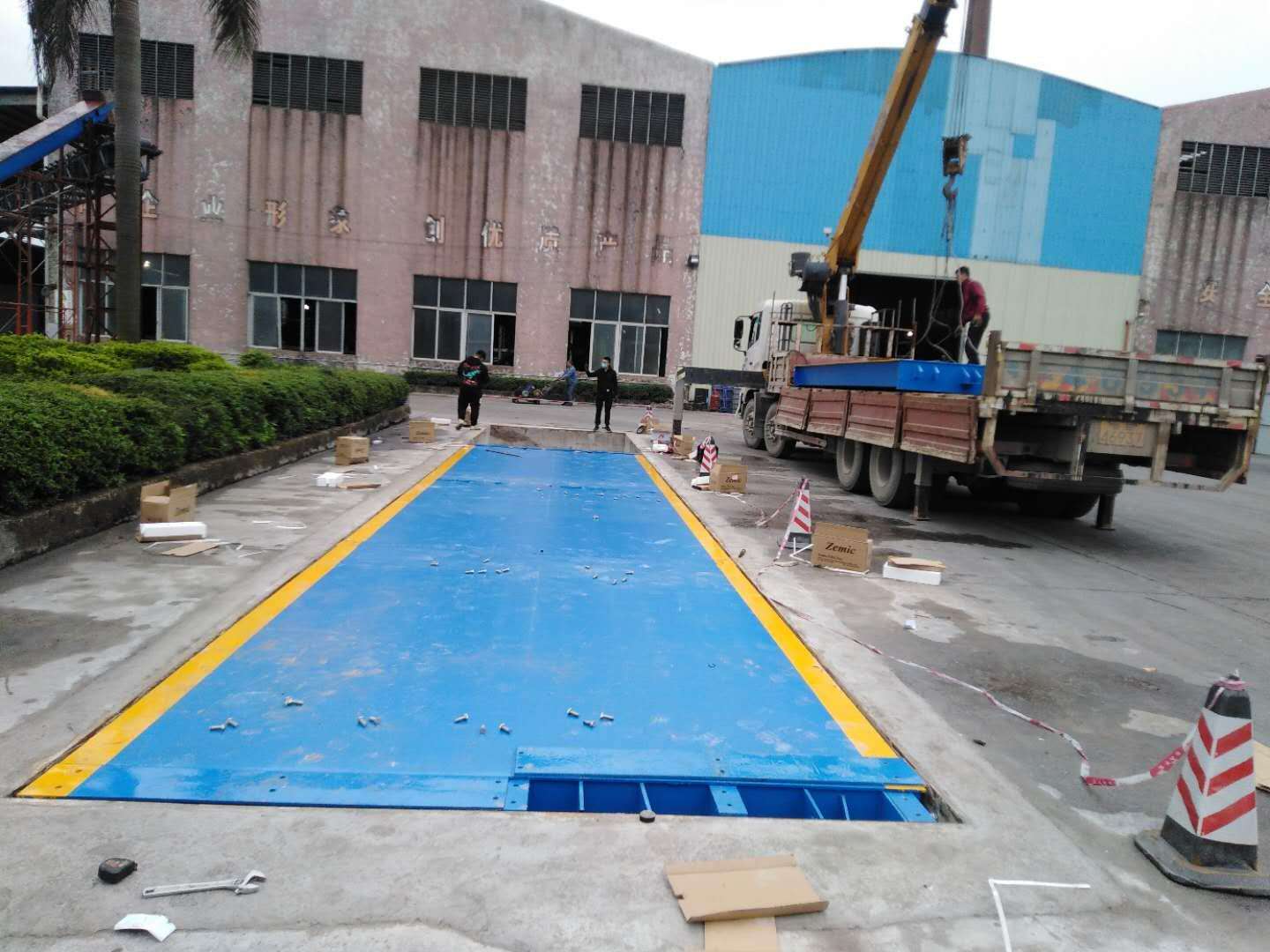

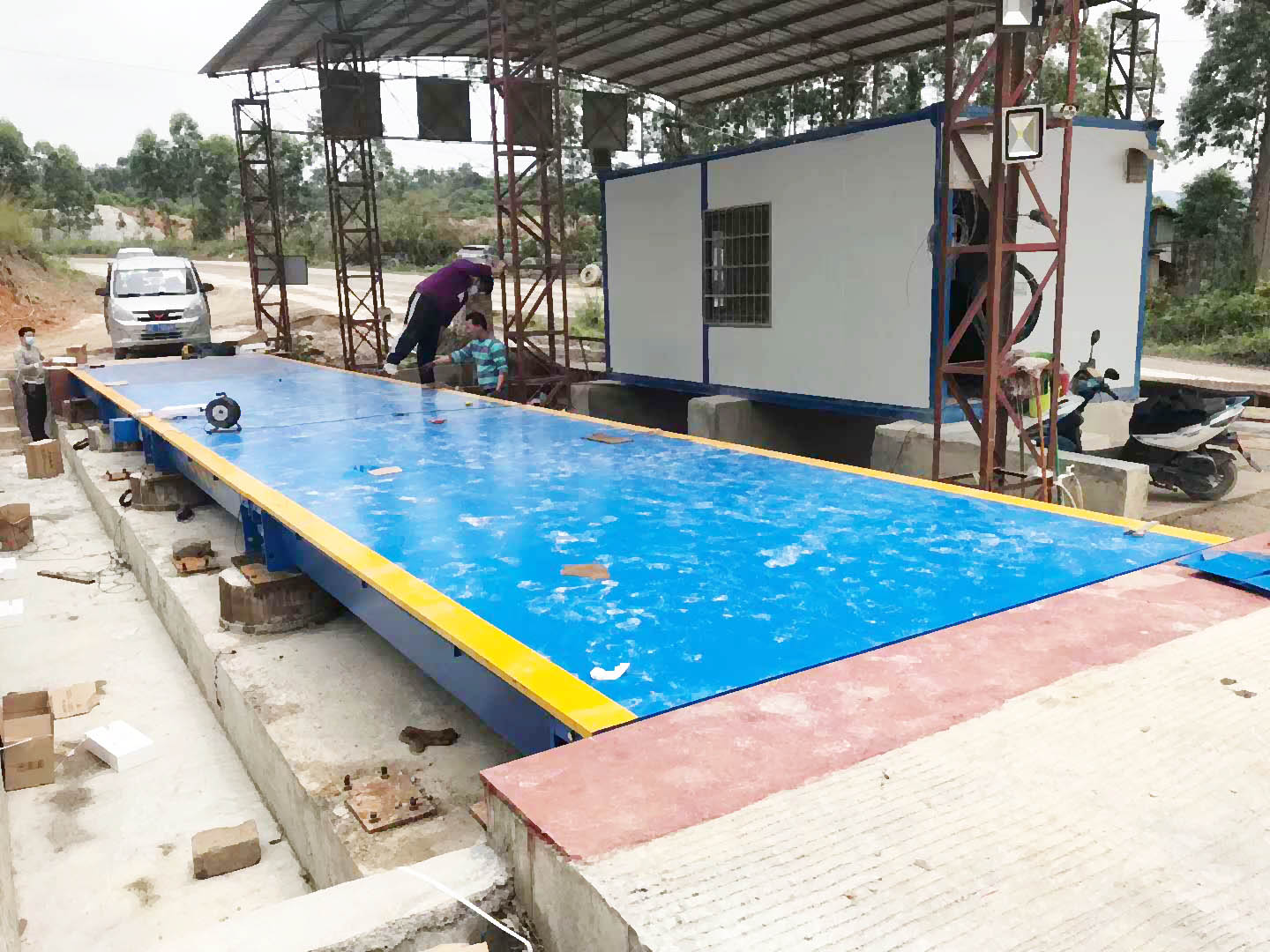

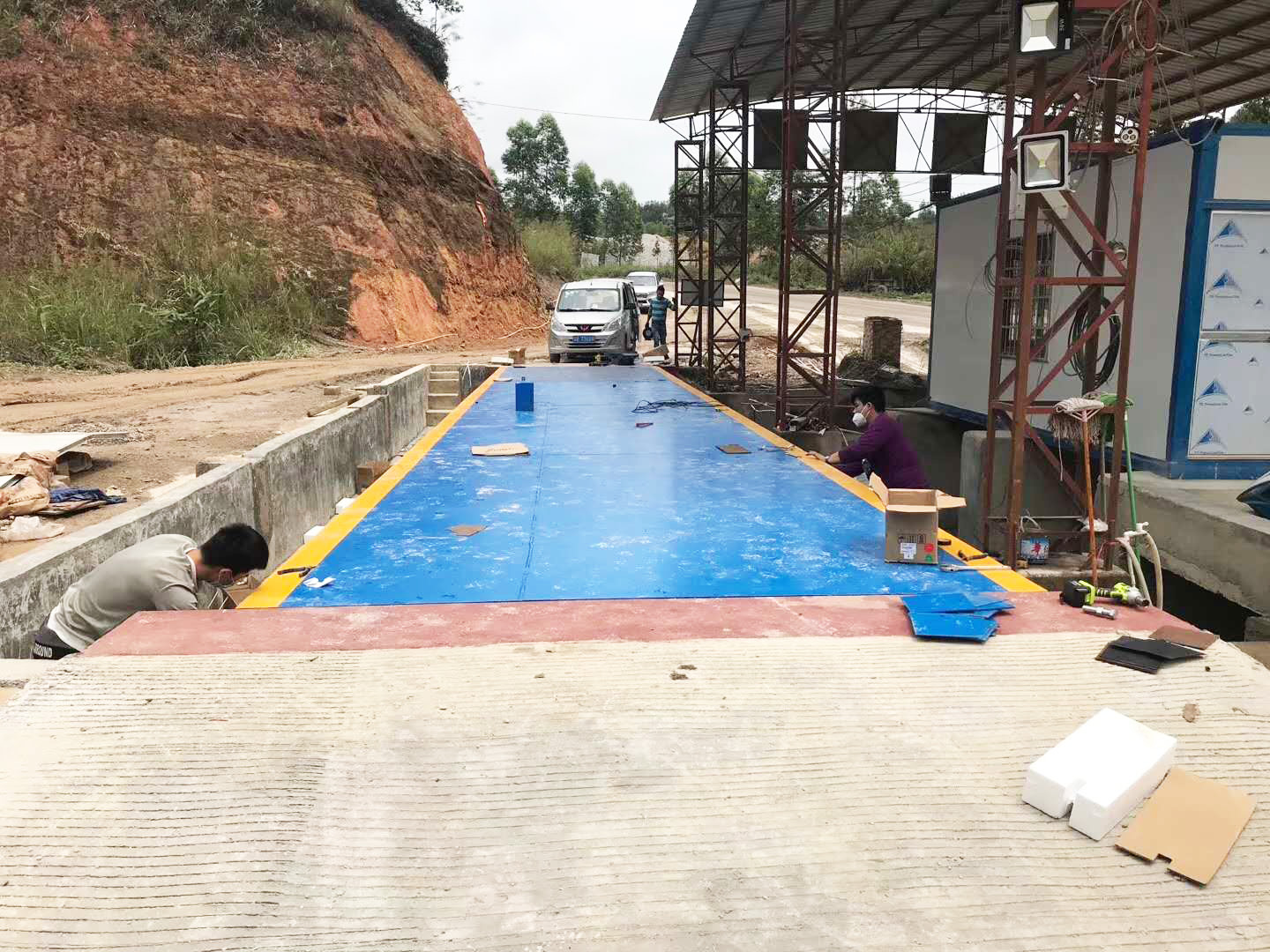

4. Choose foundation pit weighbridge, our company can provide foundation map, foundation pit construction is completed, the weighbridge can be installed synchronously to the site.
5. Leave your contact information, telephone number (company phone and private phone to ensure that you can negotiate with you in detail faster), email (the company chooses the appearance and parameters of the sensor suitable for your use, in order to quote, so that you can buy our products faster)
6. It takes about 7 to 15 days to customize a weighbridge, if the area is too far away, or the foundation is not perfect, it may take about a month. We will try to make the weighbridge you need in the shortest possible time.
